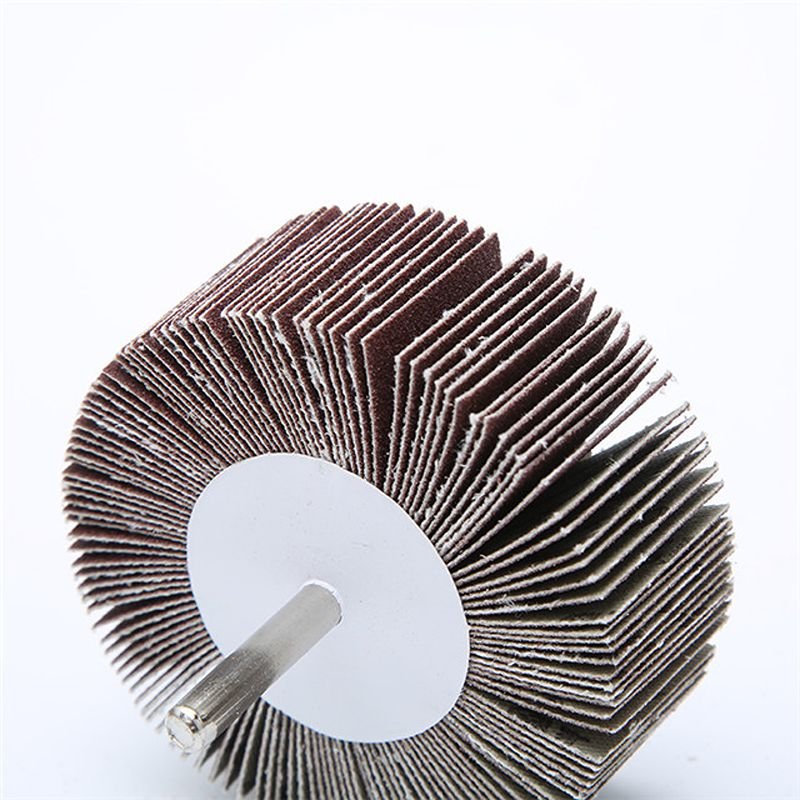

Mounted Flap Wheel
Mounted flap wheels applied to polishing and finishing of various complex shapes and deep holes of metal and non-metal materials, especially suitable for grinding and polishing of concave-convex surfaces and side surfaces.
Factory Direct
Made in our own factory, with 90%+ of output exported
OEM & Private Label
Backing print, labels, barcodes and packaging to your brand
Samples First
Test and approve samples before bulk production
4-Stage QC
Every order is inspected before it ships
Customizable options
Products Categories
Ready to Get Started?
Parameter
REX Mounted Flap Wheel is applied to polishing and finishing of all kinds of complicated and deep holes of metal and non-metal materials, especially suitable for the grinding and polishing of the concave and convex surfaces and sides.
It features a high safety factor, does not burn the workpiece and produces small noise.
It is available with Aluminium oxide, calcined Aluminium oxide, zirconium oxide, silicon carbide and ceramic abrasives.
With a 6 mm spindle, it is produced in a full range of sizes from 25×20×6 mm to 100×30×6 mm (35 sizes), and can be customized as per customer’s requirements.
Key Features
- Applied to polishing and finishing of various complex shapes and deep holes of metal and non-metal materials
- Especially suitable for grinding and polishing of concave-convex surfaces and side surfaces
- High safety factor; does not burn the workpiece; small noise
Typical Applications
- Polishing and finishing of various complex shapes and deep holes of metal and non-metal materials
- Grinding and polishing of concave-convex surfaces and side surfaces
Specifications
| Item | Specification |
| Material | Aluminium Oxide / Calcined Aluminium Oxide / Zirconium Oxide / Silicon Carbide / Ceramic |
| Spindle Diameter | 6 mm |
| Sizes | 25×20×6, 25×25×6, 30×10×6, 30×15×6, 30×20×6, 30×25×6, 30×30×6 40×10×6, 40×15×6, 40×20×6, 40×25×6, 40×30×6, 40×40×6, 40×50×6 50×10×6, 50×15×6, 50×20×6, 50×25×6, 50×30×6, 50×40×6, 50×50×6 60×15×6, 60×20×6, 60×25×6, 60×30×6, 60×40×6, 60×50×6 75×25×6 80×15×6, 80×20×6, 80×25×6, 80×30×6, 80×40×6, 80×50×6 100×30×6 (Ø×W×sd, mm) |
| Grit | 40#-80# / 40#-120# / 120# / 120#-150# / 180#-320# (per size) |
Detailed specifications can be customized, including abrasive type, grit, size, spindle and more.
